Abstract. The self-sensing ability of materials, in particular carbon fiber polymer composites (SSCFPC), is a must-have requirement when designing a structural monitoring network for remote assessment of structural serviceability. This work presents a study using an Artificial Deep Neural Network (ADNN) where is evaluated the electrical resistance (R) output of specimens subjected to an unchanged deformation state of 2,86% strain for prolonged periods of time. Six ADNN architectures are evaluated with varying numbers of neurons on pre-defined hidden layers, sharing the same four data inputs and one output. The dataset is based on 3,276 data points collected during the experimental campaign of an innovative electrode design embedded in SSCFPC specimens. The effect of the number of iterations and the architecture of the neural network is investigated in proposed ADNN models. Simple moving average (SMA), and moving Standard Deviation, are determined and plotted in terms of z-score to assist in performance evaluation of proposed ADNN models. The optimal ADNN architecture is found among six proposed architectures and for each of the four SSCFPC mixtures. Results show the proposed model architectures are able to predict values of R with greater accuracy than traditional regression mathematical methods when traditional statistical coefficients are used. However, when analyzing data in a time-series manner results show further research is needed to achieve optimal accuracy results. The analysis presented focused on the structural monitoring network infrastructure and hardware electronics compatibility for further development of this type of SSCFPC as a self-sensing composite material with the ability of automatic calibration and suitable for real-time data acquisition and artificial intelligence modeling.

Keywords: Carbon Fiber Composites, Edge Computing, Machine Learning, Self-Sensing, Stress Relaxation, Temperature dependence

---

Suggested Citation
Tomás M, Jalali S, Tabatha K. A deep neural network for electrical resistance calibration of self-sensing carbon fiber polymer composites compatible with edge computing structural monitoring hardware electronics. J. of Structural Health Monitoring. 2024; 23(2) : 750-775, doi:10.1177/14759217231170001

---

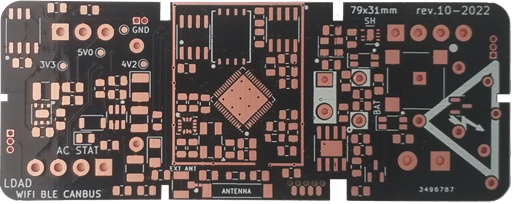

^{Figure 4 – top side of the hardware electronics}

Status: published   Date: 26-05-2023
Corresponding author: +32 471 632 520 (WhatsApp only)
short URL address to this document on GitHub: https://tinyurl.com/SmartCarbonFiberComposites

Data Availability
Data used to support the findings of this study are available for anyone to download and use on the following dataverse: https://dataverse.harvard.edu/dataverse/selfSensingCarbonfiberComposites PCB electronics hardware design KiCad files are available on GitHub with a Creative Commons License: https://github.com/aeonSolutions/openScience-Smart-Device-for-Structural-Self-Sensing-Carbon-Fiber-Based-Composites-

Declaration of Competing Interest
To this date, the author declares to have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
